Product details

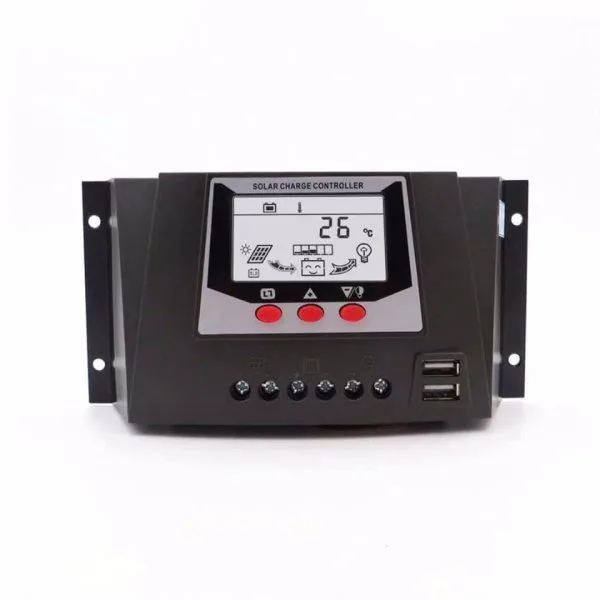

The Juta 40A PWM Solar Charge Controller represents the pinnacle of PWM charging technology, designed for large-scale solar installations requiring substantial charging capacity. This professional-grade controller combines high-current handling with sophisticated protection features for demanding solar applications.
Key Features:
- Maximum 40A charging and load current capacity
- Automatic 12V/24V system recognition

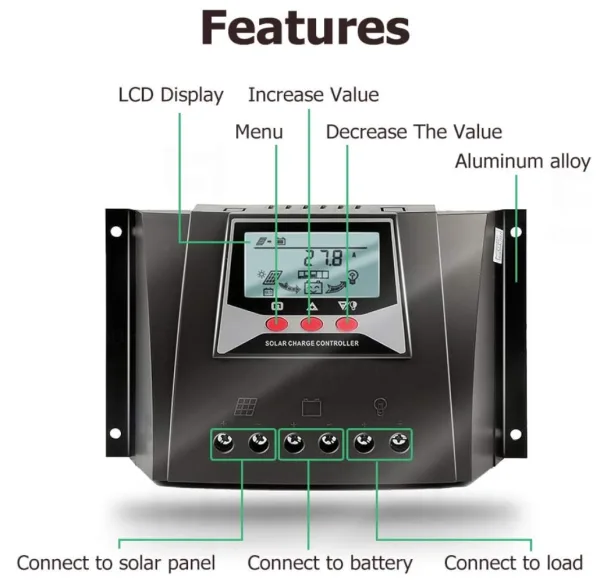

- Professional LCD display interface
- Advanced load control modes
- Comprehensive status indicators
- Temperature compensation
- Enhanced protection suite
- Industrial-grade design
Technical Specifications:
- Rated Current: 40A
- System Voltage: 12V/24V auto detect
- Maximum Solar Input: 50V
- Float Charging: 13.7V/27.4V
- Load Disconnect: 11.1V/22.2V
- Load Reconnect: 12.6V/25.2V
- Self-consumption: ≤10mA
- Temperature Compensation: -3mV/°C/2V
Protection Features:
- Battery reverse polarity protection
- Solar panel reverse polarity protection
- Over-temperature protection
- Overload protection
- Short circuit protection
- Lightning protection
- Battery over-voltage shutdown
- Load overload protection
- TVS high voltage transients protection
- Electronic short circuit protection
Display and Monitoring:

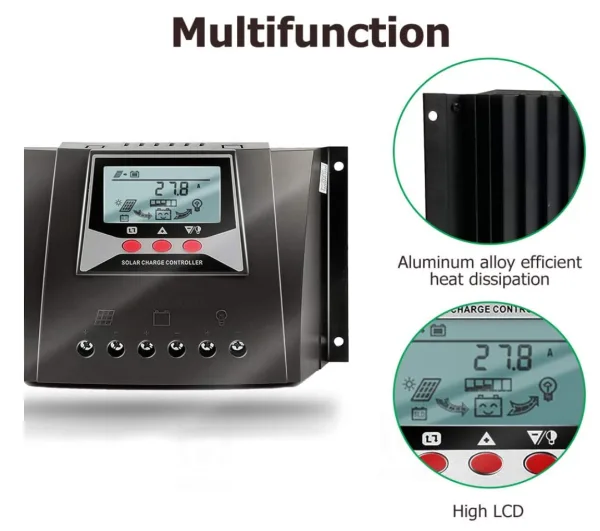

- Professional LCD screen showing:
- Battery voltage levels
- High-current charging status
- Load current monitoring
- Temperature readings
- Charging status indicators
- Error code display
- System alerts
- Battery SOC display
Load Control Modes:
- Light control mode
- Light control + time mode
- Manual control mode
- Debug mode
- Programmable timer functions
- Dual timer settings
- Custom mode settings
Applications:
- Large-scale solar installations
- Industrial applications
- Commercial solar systems
- Heavy-duty street lighting
- Telecommunications
- Agricultural operations
- Large off-grid installations
- Industrial automation systems
Installation Benefits:
- Industrial-grade design
- Heavy-duty mounting system
- Large terminal connections
- Professional mounting kit
- Comprehensive manual
- Technical installation guide
- Expert support available
The Juta 40A PWM controller utilizes sophisticated pulse width modulation technology to deliver optimal charging performance while ensuring comprehensive protection against electrical faults. Its advanced charging algorithm maintains battery health and maximizes service life through precisely controlled charging cycles.
Engineered for professional and industrial applications, this controller combines easy installation with robust performance capabilities. The clear LCD display provides immediate access to critical system parameters, enabling efficient monitoring and maintenance of large-scale solar power systems.
The substantial 40A capacity makes this controller perfect for demanding installations requiring high current handling. With its comprehensive protection features and versatile load control options, this controller ensures safe and efficient operation of industrial-grade solar power systems.
Each unit undergoes rigorous quality testing and includes complete documentation for professional installation and operation. The industrial design and reliable performance make it an ideal choice for large-scale solar applications requiring maximum current capacity.
