Product details

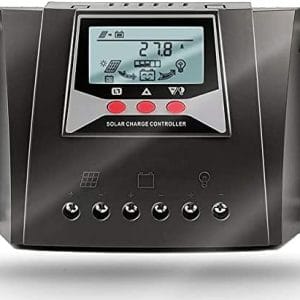

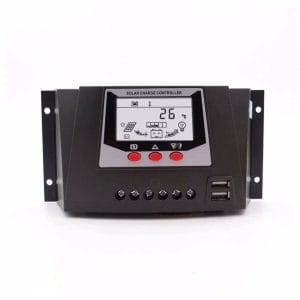

The Juta 30A PWM Solar Charge Controller delivers professional-grade power management for larger solar installations, combining high-current capacity with intelligent charging technology. This advanced controller offers comprehensive system protection and monitoring capabilities for demanding solar applications.
Key Features:
- High-capacity 30A charging and load current
- Automatic 12V/24V system recognition
- Professional LCD display interface
- Multiple load control modes
- Comprehensive LED indicators
- Temperature compensation
- Enhanced protection features
- Professional installation design
Technical Specifications:
- Rated Current: 30A
- System Voltage: 12V/24V auto detect
- Maximum Solar Input: 50V
- Float Charging: 13.7V/27.4V
- Load Disconnect: 11.1V/22.2V
- Load Reconnect: 12.6V/25.2V
- Self-consumption: ≤10mA
- Temperature Compensation: -3mV/°C/2V
Protection Features:
- Battery reverse polarity protection
- Solar panel reverse polarity protection
- Over-temperature protection
- Overload protection
- Short circuit protection
- Lightning protection
- Battery over-voltage shutdown
- Load overload protection
- TVS high voltage transients protection
Display and Monitoring:
- Advanced LCD screen displaying:
- Battery voltage readings
- Charging current status
- Load current monitoring
- Temperature indicators
- Charging status
- Error codes
- System alerts
- Battery level indication
Load Control Modes:
- Light control mode
- Light control + time mode
- Manual control mode
- Debug mode
- Timer functions
- Dual timer settings
Applications:
- Large home solar systems
- Commercial installations
- Industrial solar applications
- Solar street lighting systems
- Remote power stations
- Telecommunication systems
- Agricultural installations
- Large off-grid setups
Installation Benefits:
- Professional design
- Robust wall mounting
- Heavy-duty terminals
- Complete mounting kit
- Detailed user manual
- Professional installation guide
- Technical support available
The Juta 30A PWM controller employs advanced pulse width modulation technology to ensure optimal battery charging while providing comprehensive protection against electrical faults. Its sophisticated charging algorithm maintains battery health and maximizes service life through precisely controlled charging cycles.
Designed for professional installations and demanding applications, this controller delivers reliable performance with easy installation and operation. The clear LCD display provides instant access to critical system parameters, enabling efficient monitoring and maintenance of larger solar power systems.
The high 30A capacity makes this controller ideal for larger solar installations, providing dependable power management for multiple high-power devices and applications. With its comprehensive protection features and versatile load control options, this controller ensures safe and efficient operation of professional-grade solar power systems.
Each unit undergoes thorough quality testing and comes with complete documentation for proper installation and operation. The robust design and reliable performance make it an excellent choice for demanding solar applications requiring higher current capacity.
